Si's GTR

Simon came to us with his R35 GTR with one objective in mind - to make the fastest road car possible, while still remaining genuinely usable. This is the same objective he approached another UK tuning company with a few years ago, the result was an EVO 7 with a claimed 1000hp. Unfortunately this car was far from the usable road car he was promised, and proved horribly ridden with problems and relentless unreliability.

We are pleased to say that this time round has been much more successful. The first step was a Litchfield ‘Stage 5’ upgrade including hybrid turbos, in this spec the car was easily developing north of 700hp on 95ron fuel and was all the car one man could need for road duty. Simon however, does not see things like most other men! After a few months and many thousand miles he decided he ‘needed’ more, and we were more than happy to oblige! The R35 was then treated to a full Litchfield ‘3.8 Sport’ engine along with an ETS HTA3586 turbo kit - the results are nothing short of hilarious. With well over 900 horsepower it really does feel like you are trapped in a cartoon when the boost comes in - regardless of what gear you are in. And yes, this still is the full time ‘family car’!

Engine:
Litchfield Sport Engine 3.8 litre producing 1000hp.

Litchfield GTR Pistons produced by Capricorn from proprietary high specification aerospace alloy
Litchfield GTR Engine Rods with unique oil grooves and squirters to improve bearing oil supply and to cool pistons for improved performance.

Beryllium Copper small ends offer the best friction reduction
ARP Main stud bolt kit
Engine internals and Crank dynamically balanced
Blue printed engine block with oil and water ways smoothed, enlarged and cleaned to removing original casting marks and rough edges
Litchfield Blue Printed and High Pressure Oil pump for more consistent flow at high rpm and power levels
Litchfield Ported and polished cylinder heads with knife edge port separators and valve seat profiling
Litchfield Combustion Chamber modifications to improved squish and detonation reduction
Litchfield Sport Camshafts with increased lift and duration whilst maintaining excellent idle control and low speed performance
Litchfield custom valve springs which insure correct valve pressure but with reduced valve train noise
New bearings, engine gaskets and seals
Litchfield 1000 bhp + intercooler kit

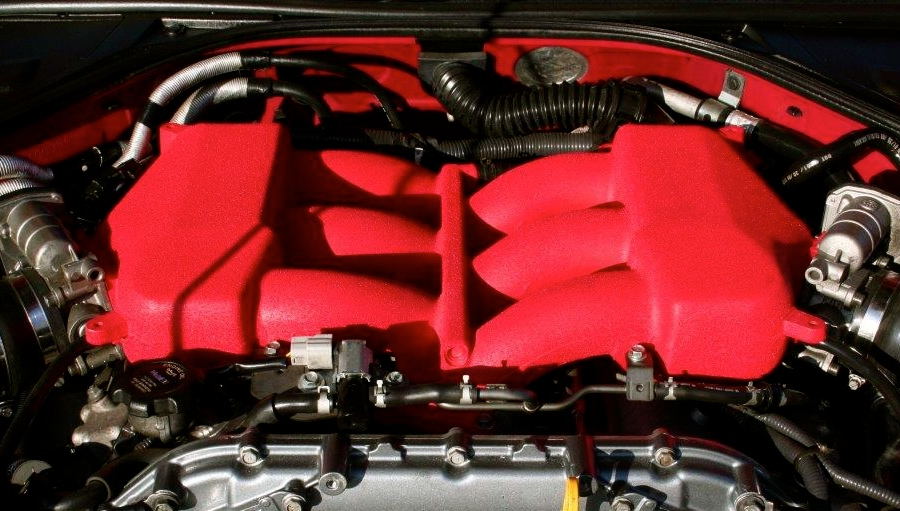

Litchfield Large intake manifold
ANSU battleship fuel system with Bugatti Veyron fuel pumps
6 x 1100cc injectors

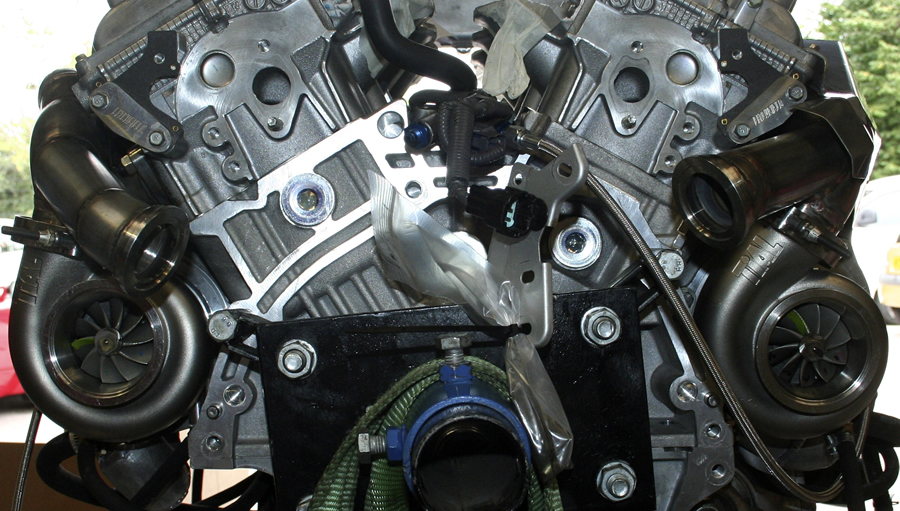

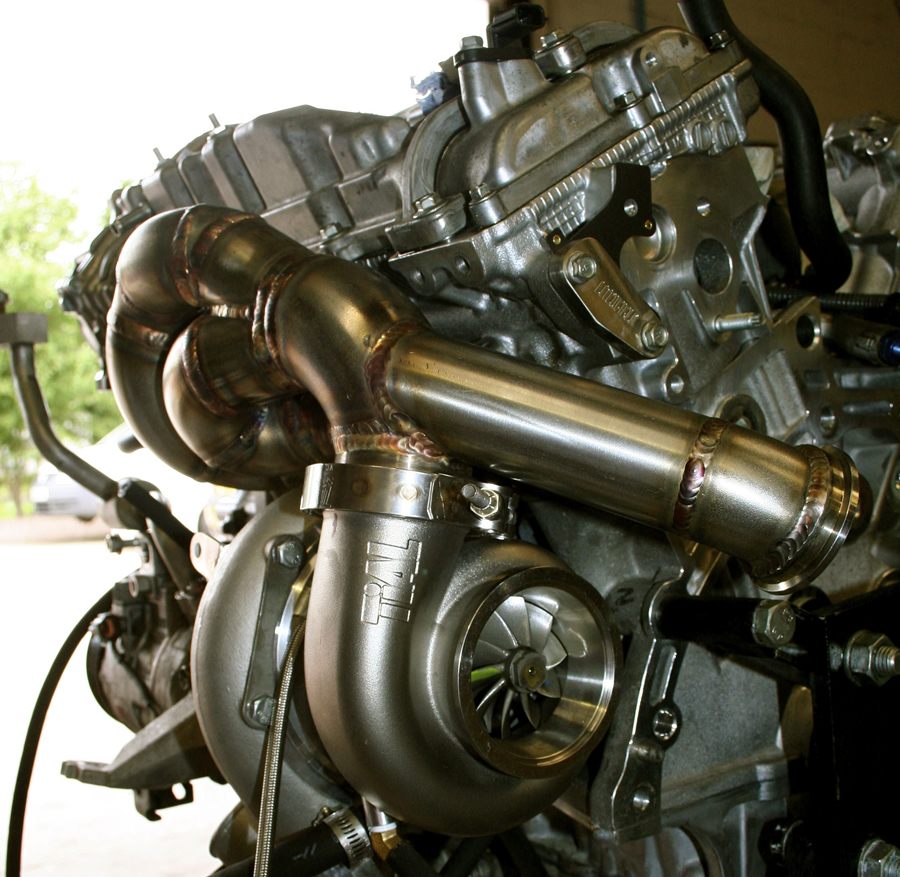

ETS GT3586HTA turbo Kit

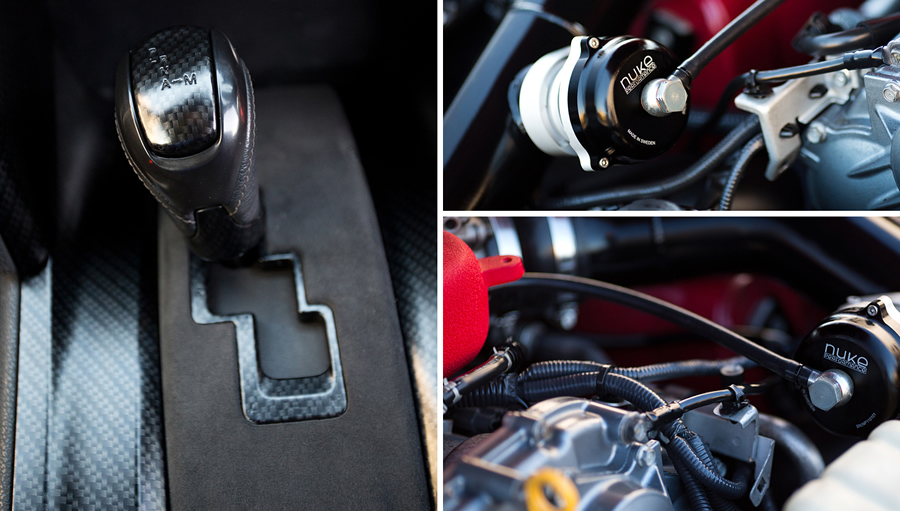

Nuke Performance Blow off Valve (BOV) kit
Litchfield 102mm exhaust
ECUTEK ECU mapping
Upgraded gearbox with Dodson circlips and Clutch

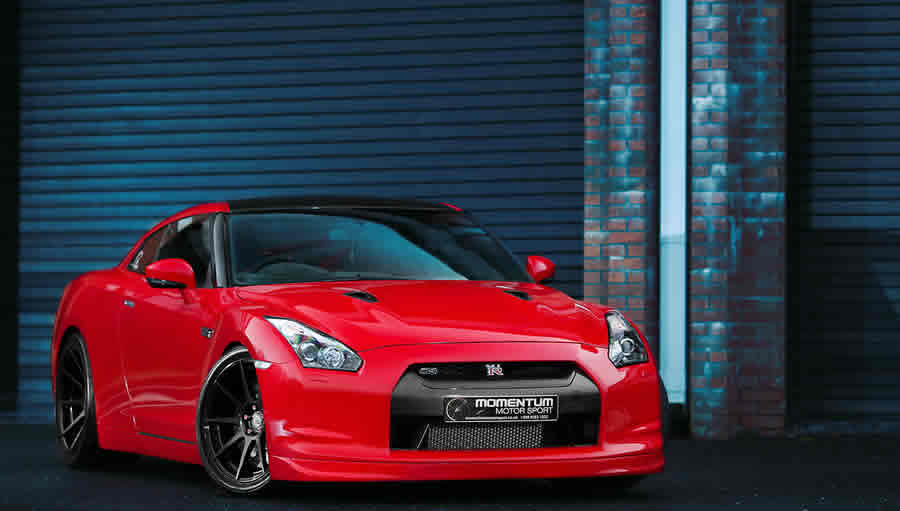

Exterior:

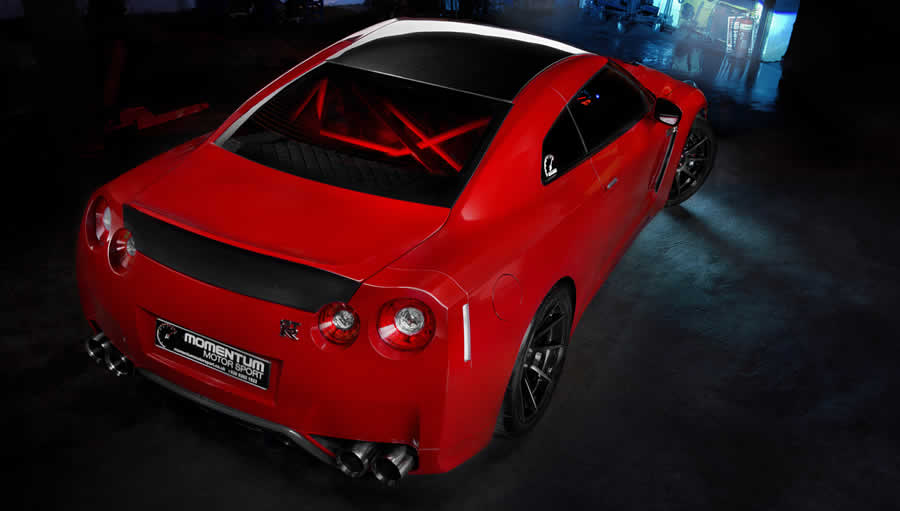

Carbon Fibre Roof Skin
Carbon Fibre Ducktail Boot Lid
Carbon Fibre Accents Throughout
Carbon Fibre rear diffuser

Brakes, Suspension & Tires:
AP 410mm Big brake kit front and rear.
Nitron Coilovers
20” BC Forged Wheels
Toyo Proxies R888

Interior:
Custom trimmed Recaro Bucket Seats
Half Roll Cage
Carbon Fibre Accents Throughout
Rear seat delete with a custom boot build. Sound system with JL rear subwoofers and 2 Alpine Amps, with custom red LED light surrounds .
